HJT Ultra Light Flexible Solar Panel


HJT Ultra Thin Ultra Light Weight Flexible Solar Panel
Model: TR-395M
Brand: TIENREK
Weight: 4.2kg
Solar cell: HJT 158.75 half cut cell
Surface material: ETFE
Dimension: 1850*990*2mm

Inquiry Now

HJT Half Cut Ultra Lightweight Flexible Solar Panels Series

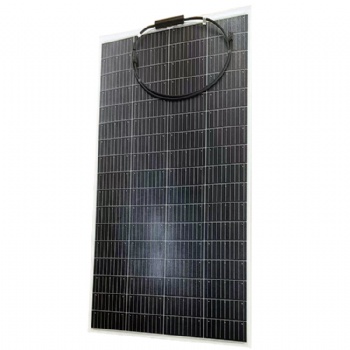

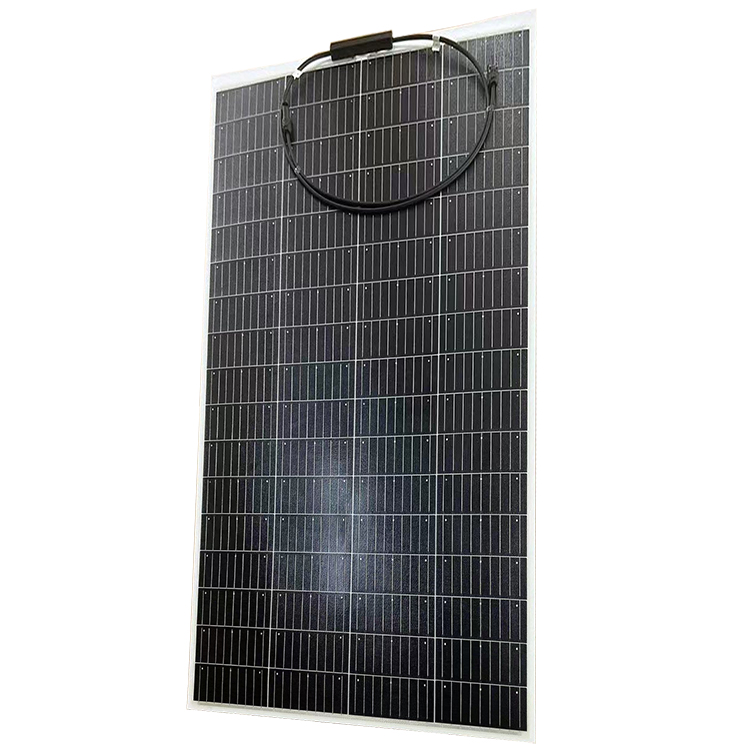

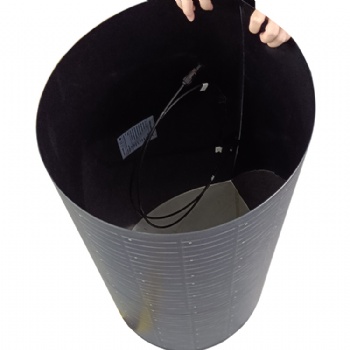

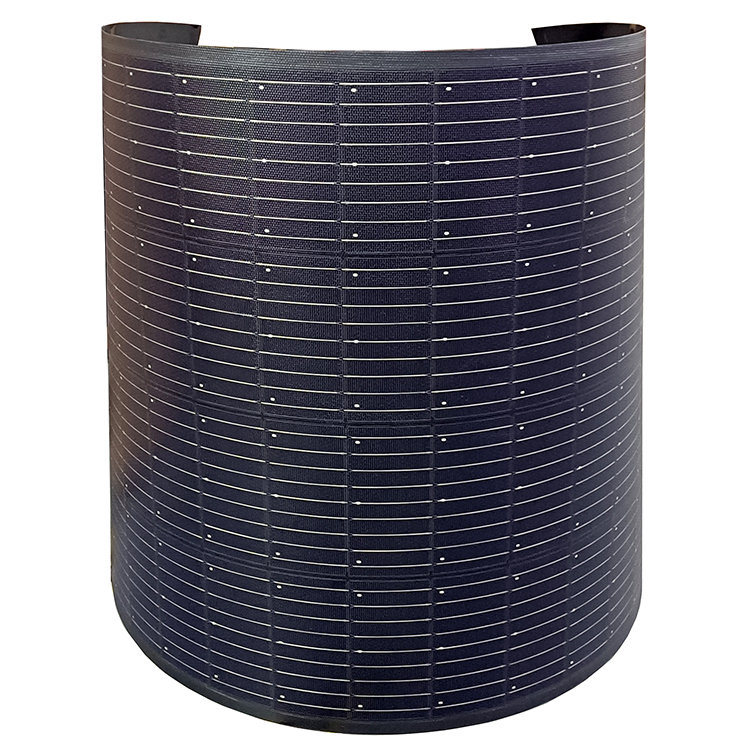

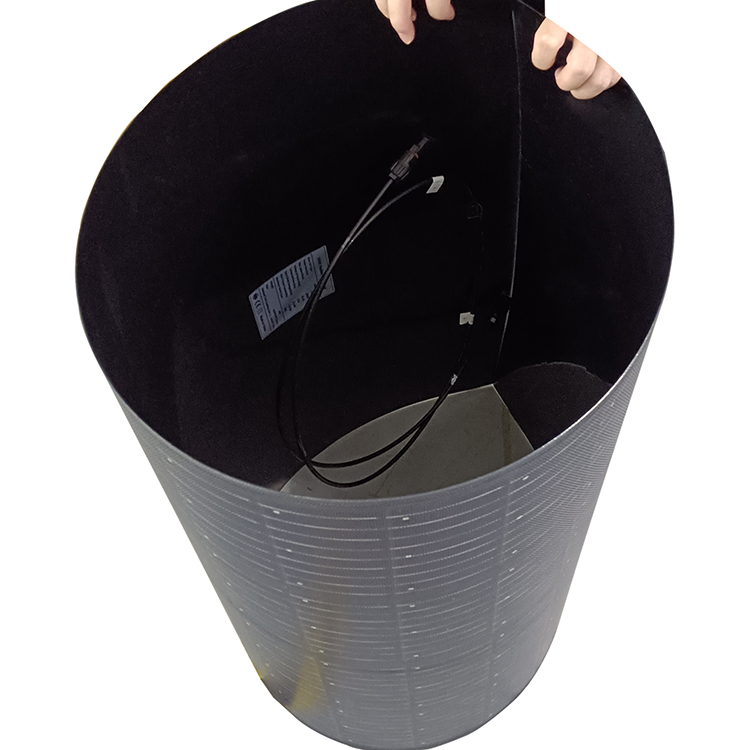

Tienrek Ultra Thin Ultra light flexible solar panel is a glass-free, combining composite material technology solar modules. When the panel is bent, it cannot crack and be damaged.


Application:

Tienrek's lightweight, flexible and ultra-thin solar modules can be applied on caravan, low-load bearing roofs, clipped onto balcony railings, ventilated facades & streetlights,seamless integration with underlying installation surface.

Wide using, excellent performance.


Specification

Power of Solar Panel
200 Watt395 Watt
Solar CellHJT 158.75 Half Solar Cell
No. of Cell4*17pcs
6*22pcs

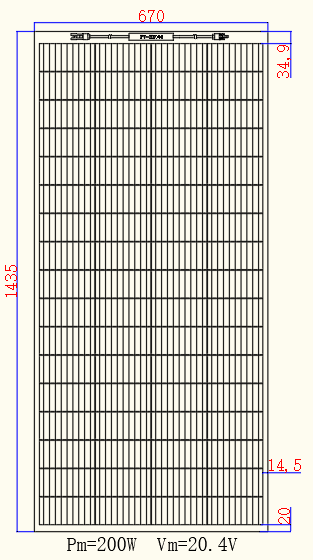

Size1435*670mm

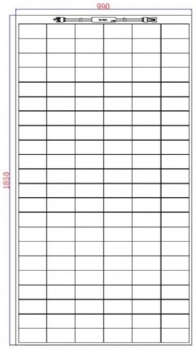

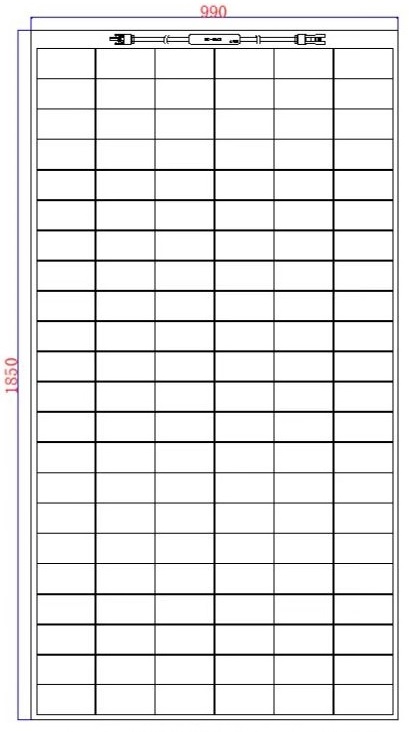

1850*990mm
Vmp (V)20.4V
39.6V
Imp (A)9.80A9.97A
Voc (V)23.28V45.2V
Isc (A)10.29A10.58A
StructureETFE surface, Middle Composite Film, TPT backsheet
Junction BoxIP67, 0.9m PV cable + MC4 Connector
Measured at STC Condition: Irradiance 1000w/m2 AM1.5 Spectrum Temperature 25℃


If need other power please contact with us. The follow links is testing video.
