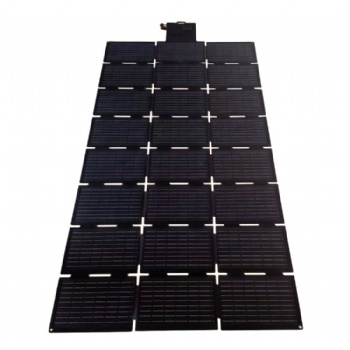

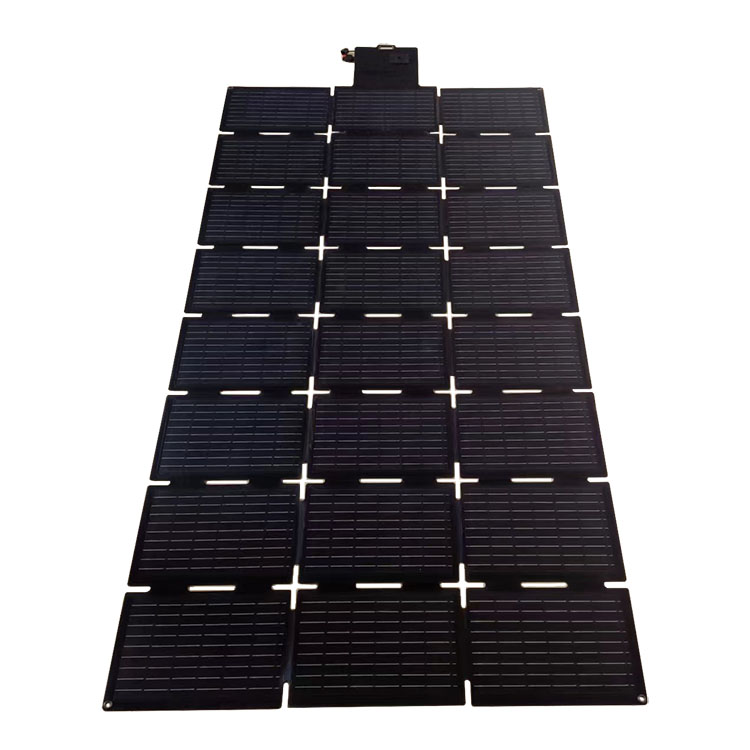

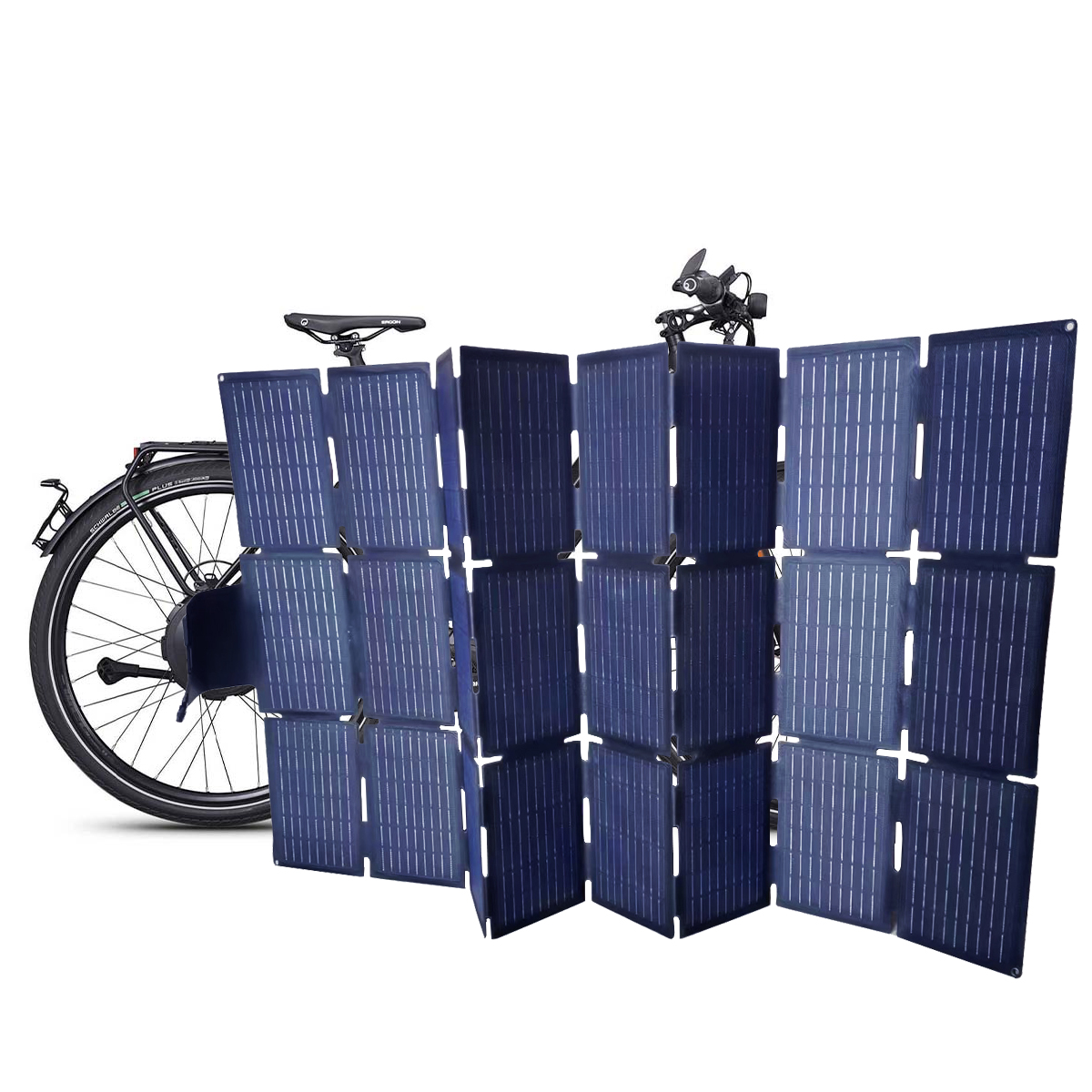

Portable E-bike Solar Panel Charger


Portable E-bike Solar Panel Charger is a lightweight, foldable design, high conversion efficiency solar charger, designed for electric bike, camping, boat, travel RV battery charge, emergency using.
Model: TR-200MB
Brand: TIENREK
Weight: 5.2kgsolar panel blanket 200w
Solar cell: HJT Mono 158.75
Surface material: ETFE
Open Size: 1744*866*4mm

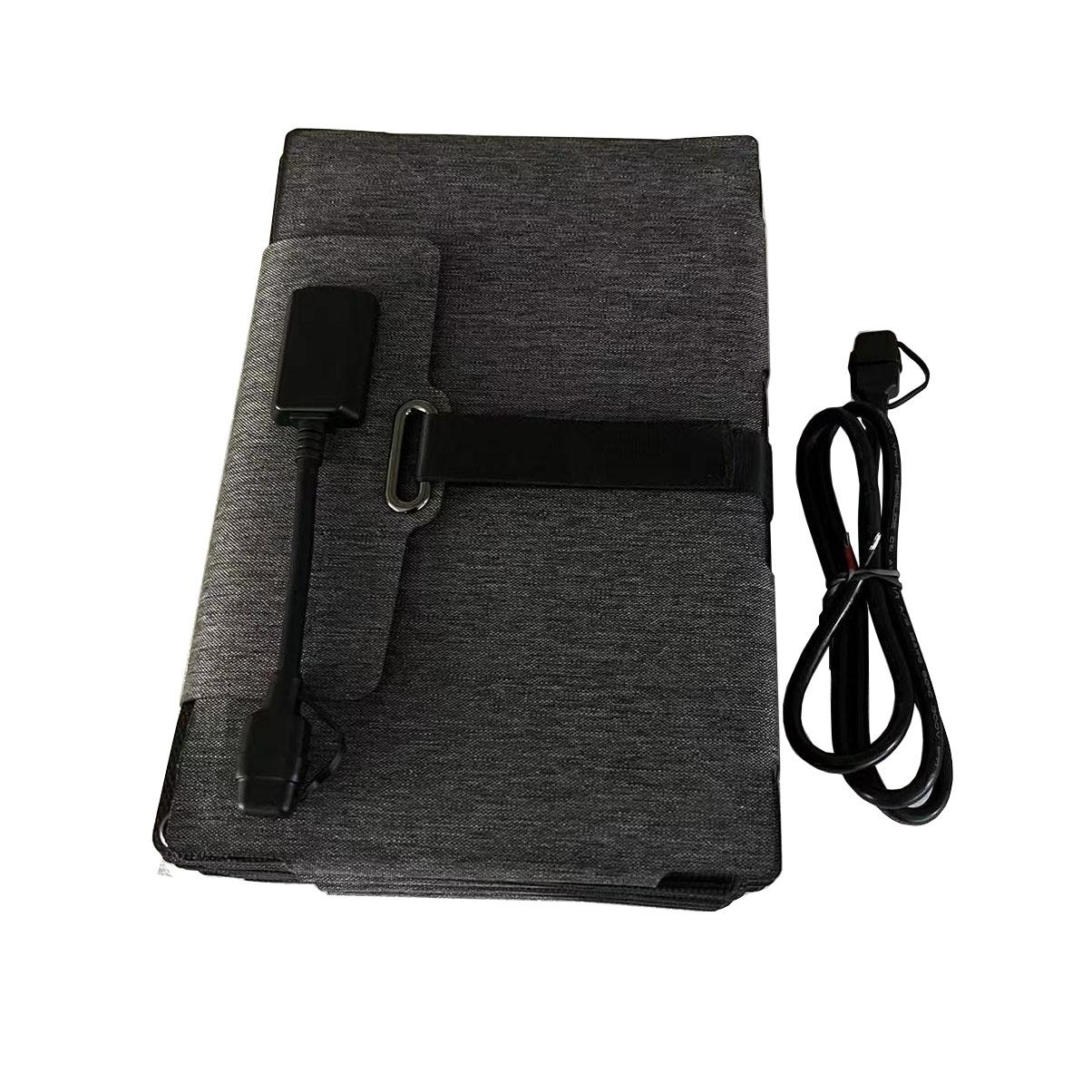

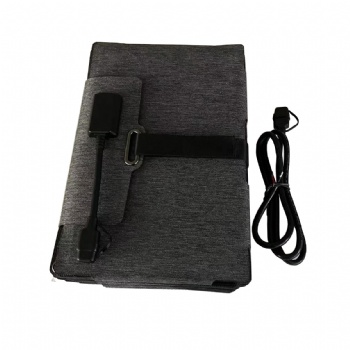

Fold Size: 188*280*100mm

Inquiry Now

EBIKE Foldable Solar Panel Series Feature:

1, Portable & Charging: Portable or foldable design save space even be better to put and easier to carry anywhere. Built-in bracket design is better for charging anytime, anywhere.

2, Reinforcement Design: TIENREK unique manufacturing process combines FR4-PCB and polymer materials to make solar panels thin and hard.

3, Super Waterproof: Cloth and zip are used waterproofing materials.

4, Premium EFTE Film: Superior light transmittance and weatherproof performance, and is also heat, corrosion, and UV resistant. ETFE also has self-cleaning abilities, ensures the best performance day after day.

5, Widely Application: It can supply power to Electric bicycle, electric motorcycle, DC electric appliance, Vehicle power supply, Refrigerator, Portable energy storage power supply, Oil exploration equipment and Marine etc.


Specification:

Power of Solar Panel160 Watt (3*6)200 Watt (3*8)
Solar CellHJT Mono 158.75*158.75
Open Size (mm)1345*866mm1744*866mm
Vmp (V)21.6V28.8V
Imp (A)
7.4A34.5A
Voc (V)25.9V21.5A
Isc (A)7.85A
7.36A
Fabric900D Nylon
Surface MaterialPET / ETFE

This is lightweight, portable, and powerful solar charger for e-bikes currently on the market.  With the flexibility to charge any size battery from 36 to 72 volts. It is made by HJT solar cell, the efficiency of 24% which is the highest efficiency on the market.


It includes a variable voltage MPPT charge controller.  The voltage is variable to charge 36v, 48v, 52v, 60v, and 72-volt batteries as efficiently as possible.

Contact us now custom your logo, color, or other specification.
