HJT ETFE Lightweight Robust Flexible Solar Panel Model: TR-395M Brand: TIENREK Weight: 6.4kg Solar cell: HJT 158.75 half cut cell Surface material: ETFE Dimension: 1853*1020*5mm
ETFE Lightweight Robust Solar Panels With Thin Aluminium Frame

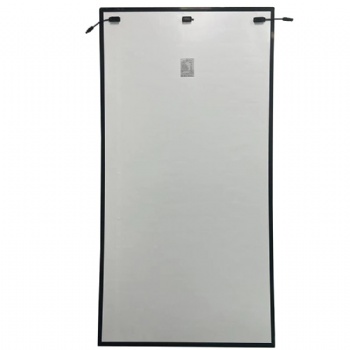

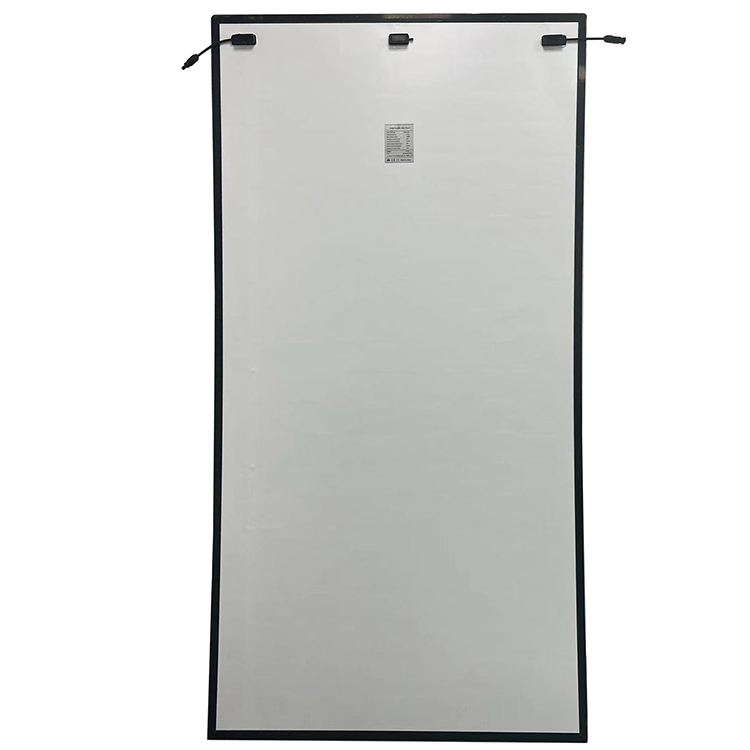

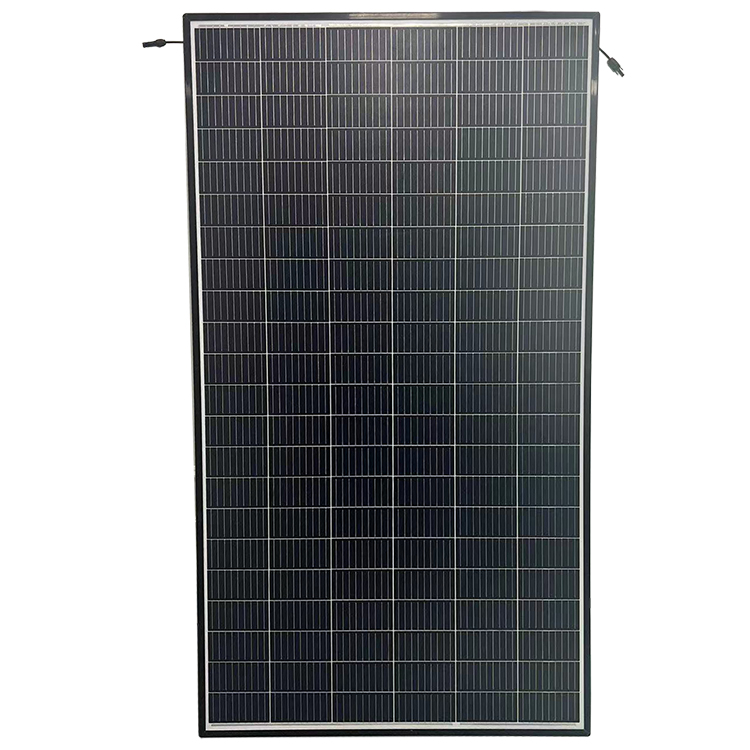

Tienrek Lightweight Robust Panel is a glass-free, with thin aluminium frame around perimeter solar module, also can call semi-rigid solar panel
Application:

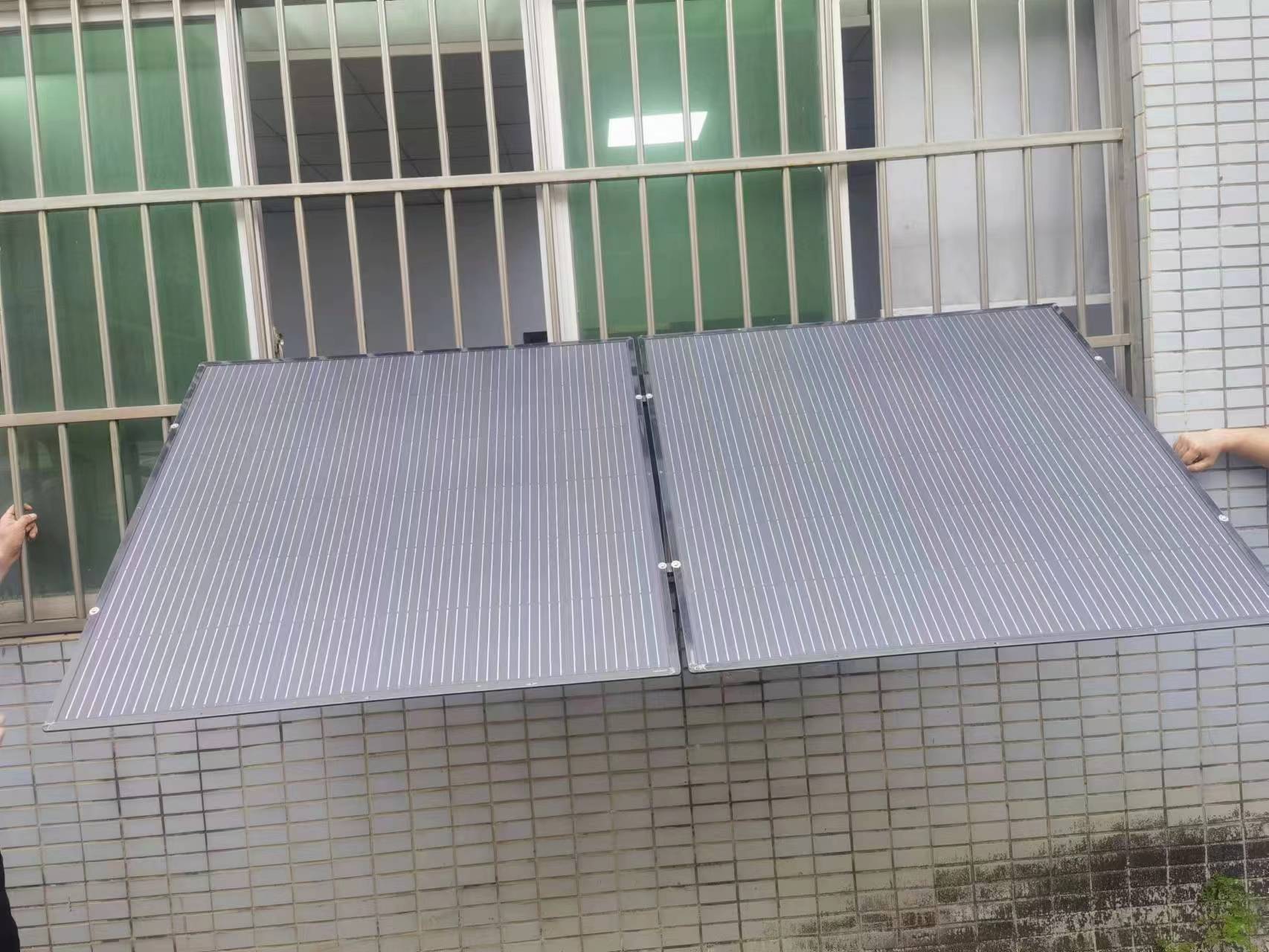

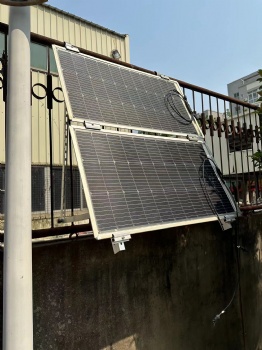

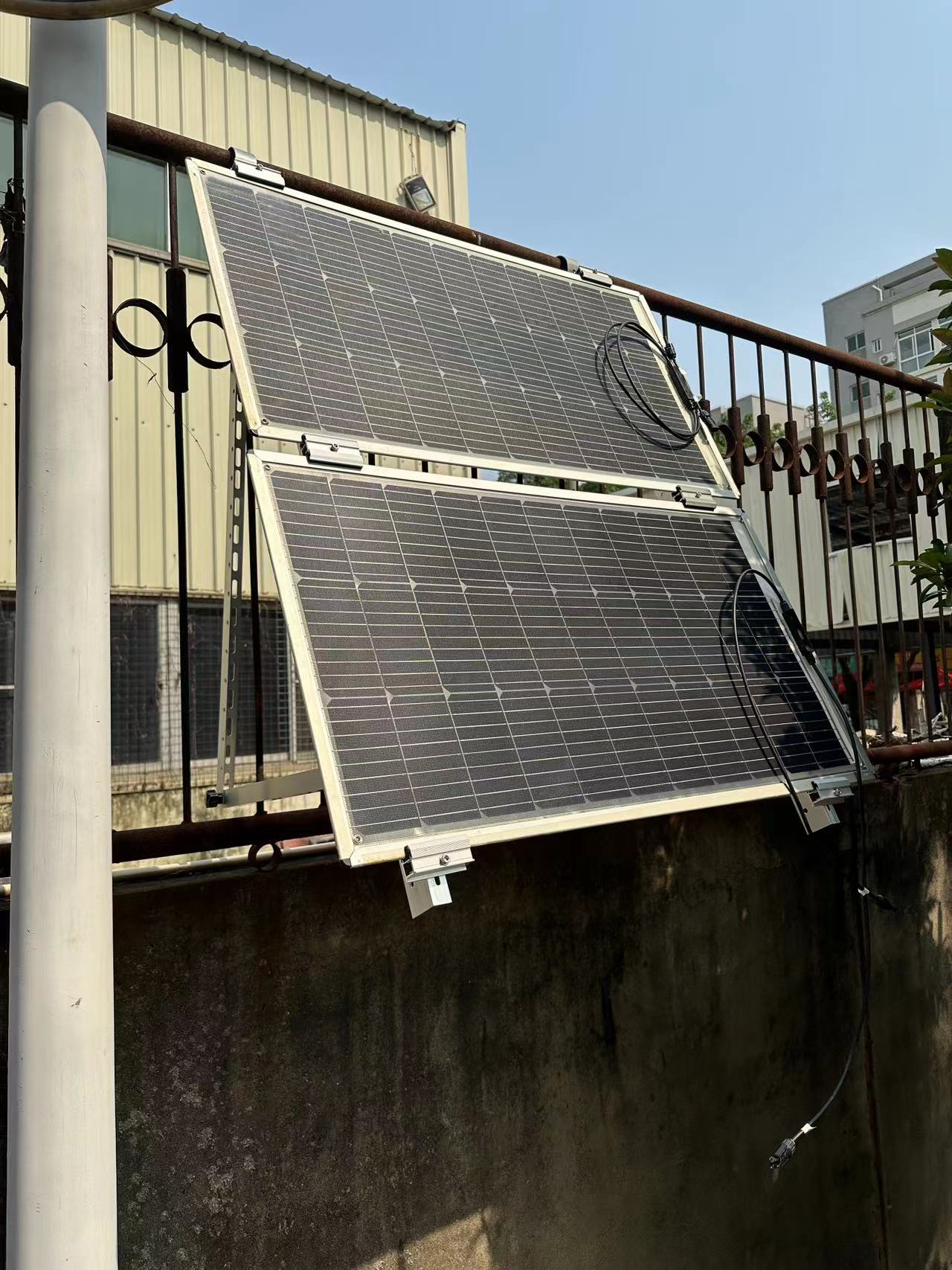

Tienrek's lightweight yet robust panels are perfect for various applications, including caravans, motorhomes, yachts, trains, buses and balcony.
Wide using, excellent performance.
Specification
| Power of Solar Panel | 375 Watt | 395 Watt |
| Solar Cell | HJT 158.75 Half Solar Cell | |
| No. of Cell | 6*21pcs | 6*22pcs |
| Size | 1692*1020*5mm | 1853*1020*5mm |
| Vmp (V) | 37.8V | 39.6V |
| Imp (A) | 9.92A | 9.97A |
| Voc (V) | 43.15V | 45.2V |
| Isc (A) | 10.42A | 10.58A |
| Structure | ETFE surface, Middle Composite Film, TPT backsheet | |
| Junction Box | IP67, 0.3m PV cable + MC4 Connector (or customized) | |
| Measured at STC Condition: Irradiance 1000w/m2 AM1.5 Spectrum Temperature 25℃ | ||
If need other power please contact with us.
